The Open MCT platform utilizes the framework layer to provide an extensible baseline for applications which includes:

• A common user interface (and user interface paradigm) for dealing with domain objects of various sorts.
• A variety of extension points for introducing new functionality of various kinds within the context of the common user interface.
• A service infrastructure to support building additional components.

While the framework provides a more general architectural paradigm for building application, the platform adds more specificity by defining additional extension types and allowing for integration with back end components.

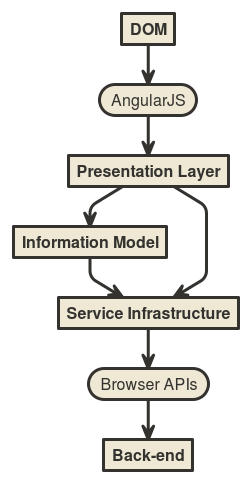

The run-time architecture of an Open MCT application can be categorized into certain high-level tiers:

Applications built using Open MCT may add or configure functionality in any of these tiers.

• DOM: The rendered HTML document, composed from HTML templates which have been processed by AngularJS and will be updated by AngularJS to reflect changes from the presentation layer. User interactions are initiated from here and invoke behavior in the presentation layer. HTML templates are written in Angular’s template syntax; see the Angular documentation on templates​. These describe the page as actually seen by the user. Conceptually, stylesheets (controlling the look-and-feel of the rendered templates) belong in this grouping as well.
• Presentation layer: The presentation layer is responsible for updating (and providing information to update) the displayed state of the application. The presentation layer consists primarily of controllers and directives. The presentation layer is concerned with inspecting the information model and preparing it for display.
• Information model: ​Provides a common (within Open MCT Web) set of interfaces for dealing with “things” ­ domain objects ­ within the system. User-facing concerns in a Open MCT Web application are expressed as domain objects; examples include folders (used to organize other domain objects), layouts (used to build displays), or telemetry points (used as handles for streams of remote measurements.) These domain objects expose a common set of interfaces to allow reusable user interfaces to be built in the presentation and template tiers; the specifics of these behaviors are then mapped to interactions with underlying services.
• Service infrastructure: The service infrastructure is responsible for providing the underlying general functionality needed to support the information model. This includes exposing underlying sets of extensions and mediating with the back-end.
• Back-end: The back-end is out of the scope of Open MCT, except for the interfaces which are utilized by adapters participating in the service infrastructure. Includes the underlying persistence stores, telemetry streams, and so forth which the Open MCT Web client is being used to interact with.

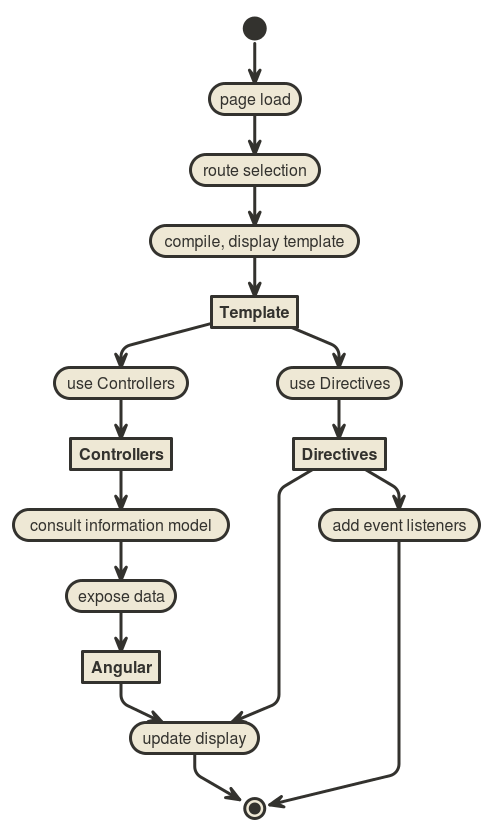

Once the application has been initialized Open MCT primarily operates in an event-driven paradigm; various events (mouse clicks, timers firing, receiving responses to XHRs) trigger the invocation of functions, typically in the presentation layer for user actions or in the service infrastructure for server responses.

The "main point of entry" into an initialized Open MCT application is effectively the route which is associated with the URL used to access Open MCT (or a default route.) This route will be associated with a template which will be displayed; this template will include references to directives and controllers which will be interpreted by Angular and used to initialize the state of the display in a manner which is backed by both the information model and the service infrastructure.

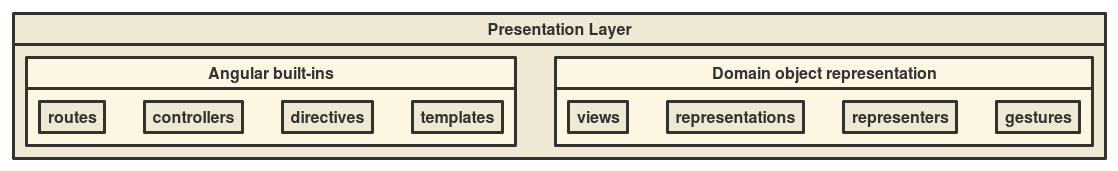

The presentation layer of Open MCT is responsible for providing information to display within templates, and for handling interactions which are initiated from templated DOM elements. AngularJS acts as an intermediary between the web page as the user sees it, and the presentation layer implemented as Open MCT extensions.

Several extension categories in the presentation layer map directly to primitives from AngularJS:

• Controllers provide data to templates, and expose functionality that can be called from templates.
• Directives effectively extend HTML to provide custom behavior associated with specific attributes and tags.
• Routes are used to associate specific URLs (including the fragment identifier) with specific application states. (In Open MCT, these are used to describe the mode of usage - e.g. browse or edit - as well as to identify the object being used.)
• Templates are partial HTML documents that will be rendered and kept up-to-date by AngularJS. Open MCT introduces a custom mct-include directive which acts as a wrapper around ng-include to allow templates to be referred to by symbolic names.

The remaining extension categories in the presentation layer are specific to displaying domain objects.

• Representations are templates that will be used to display domain objects in specific ways (e.g. "as a tree node.")
• Views are representations which are exposed to the user as options for displaying domain objects.
• Representers are extensions which modify or augment the process of representing domain objects generally (e.g. by attaching gestures to them.)
• Gestures provide associations between specific user actions (expressed as DOM events) and resulting behavior upon domain objects (typically expressed as members of the actions extension category) that can be reused across domain objects. For instance, drag and drop are both gestures associated with using drag-and-drop to modify the composition of domain objects by interacting with their representations.

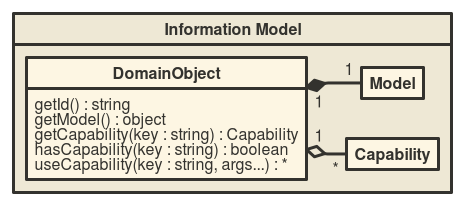

Domain objects are the most fundamental component of Open MCT's information model. A domain object is some distinct thing relevant to a user's work flow, such as a telemetry channel, display, or similar. Open MCT is a tool for viewing, browsing, manipulating, and otherwise interacting with a graph of domain objects.

A domain object should be conceived of as the union of the following:

• Identifier: A machine-readable string that uniquely identifies the domain object within this application instance.
• Model: The persistent state of the domain object. A domain object's model is a JavaScript object that can be losslessly converted to JSON.
• Capabilities: Dynamic behavior associated with the domain object. Capabilities are JavaScript objects which provide additional methods for interacting with the domain objects which expose those capabilities. Not all domain objects expose all capabilities. The interface exposed by any given capability will depend on its type (as identified by the key argument.) For instance, a persistence capability has a different interface from a telemetry capability. Using capabilities requires some prior knowledge of their interface.

At run-time, the user is primarily concerned with interacting with domain objects. These interactions are ultimately supported via back-end services, but to allow customization per-object, these are often mediated by capabilities.

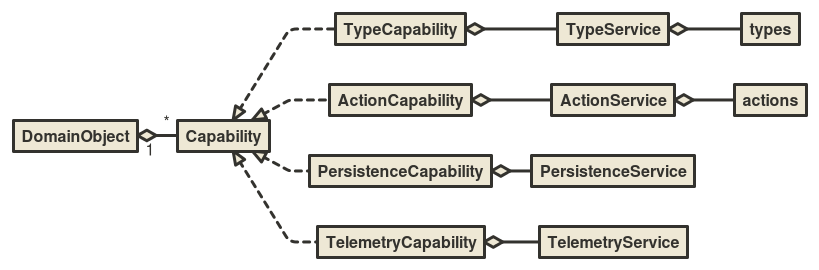

A common pattern that emerges in the Open MCT Platform is as follows:

• A DomainObject has some particular behavior that will be supported by a service.
• A Capability of that domain object will define that behavior, for that domain object, supported by a service.
• A Service utilized by that capability will perform the actual behavior.
• An extension category will be utilized by that capability to determine the set of possible behaviors.

Concrete examples of capabilities which follow this pattern (or a subset of this pattern) include:

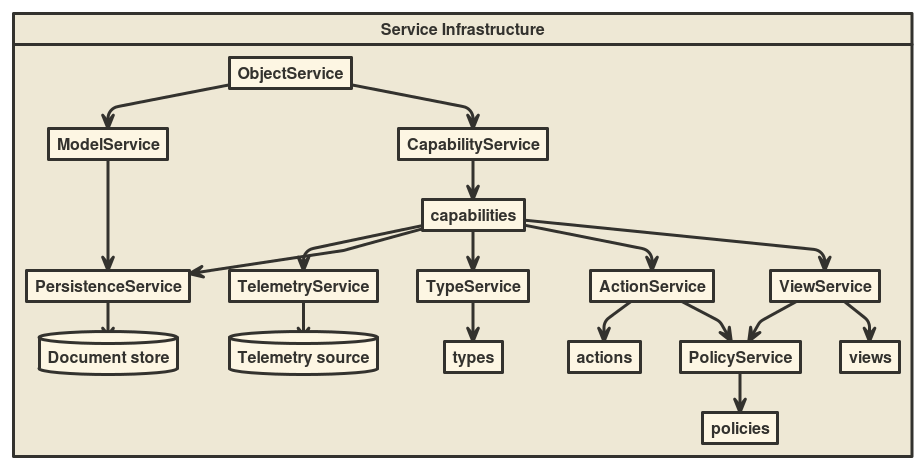

Most services exposed by the Open MCT platform follow the composite services to permit a higher degree of flexibility in how a service can be modified or customized for specific applications.

To simplify usage for plugin developers, the platform also usually includes a provider implementation for these service type that consumes some extension category. For instance, an ActionService provider is included which depends upon extension category actions, and exposes all actions declared as such to the system. As such, plugin developers can simply implement the new actions they wish to be made available without worrying about the details of composite services or implementing a new ActionService provider; however, the ability to implement a new provider remains useful when the expressive power of individual extensions is insufficient.

A short summary of the roles of these services:

• ObjectService: Allows retrieval of domain objects by their identifiers; in practice, often the main point of entry into the information model.
• ModelService: Provides domain object models, retrieved by their identifier.
• CapabilityService: Provides capabilities, as they apply to specific domain objects (as judged from their model.)
• TelemetryService: Provides access to historical and real-time telemetry data.
• PersistenceService: Provides the ability to store and retrieve documents (such as domain object models.)
• ActionService: Provides distinct user actions that can take place within the system (typically, upon or using domain objects.)
• ViewService: Provides views for domain objects. A view is a user-selectable representation of a domain object (in practice, an HTML template.)
• PolicyService: Handles decisions about which behavior are allowed within certain specific contexts.
• TypeService: Provides information to distinguish different types of domain objects from one another within the system.

As domain objects are central to Open MCT's information model, acquiring domain objects is equally important.

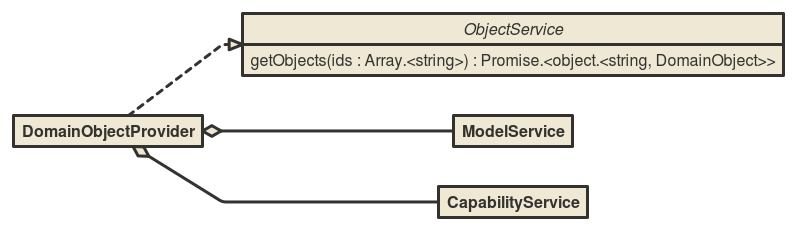

Open MCT includes an implementation of an ObjectService which satisfies this capability by:

• Consulting the Model Service to acquire domain object models by identifier.
• Passing these models to a Capability Service to determine which capabilities are applicable.
• Combining these results together as DomainObject instances.

The platform's model service is responsible for providing domain object models (effectively, JSON documents describing the persistent state associated with domain objects.) These are retrieved by identifier.

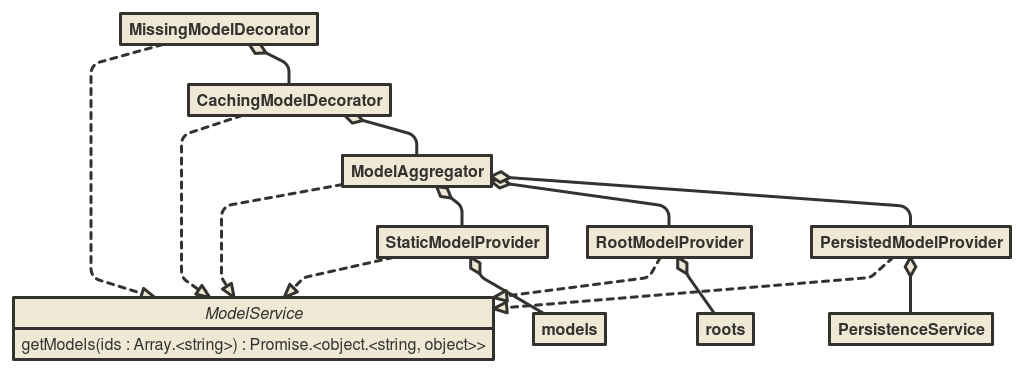

The platform includes multiple components of this variety:

• PersistedModelProvider looks up domain object models from a persistence store (the PersistenceService); this is how user-created and user-modified domain object models are retrieved.
• RootModelProvider provides domain object models that have been declared via the roots extension category. These will appear at the top level of the tree hierarchy in the user interface.
• StaticModelProvider provides domain object models that have been declared via the models extension category. This is useful for allowing plugins to expose new domain objects declaratively.
• ModelAggregator merges together the results from multiple providers. If multiple providers return models for the same domain object, the most recently modified version (as determined by the modified property of the model) is chosen.
• CachingModelDecorator caches model instances in memory. This ensures that only a single instance of a domain object model is present at any given time within the application, and prevent redundant retrievals.
• MissingModelDecorator adds in placeholders when no providers have returned domain object models for a specific identifier. This allows the user to easily see that something was expected to be present, but wasn't.

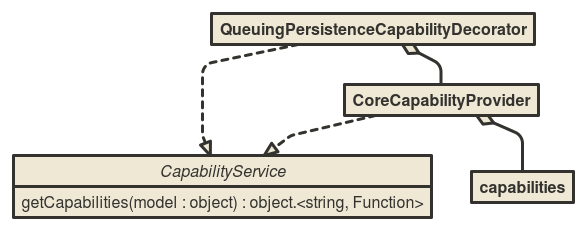

The capability service is responsible for determining which capabilities are applicable for a given domain object, based on its model. Primarily, this is handled by the CoreCapabilityProvider, which examines capabilities exposed via the capabilities extension category.

Additionally, platform/persistence/queue decorates the persistence capability specifically to batch persistence attempts among multiple objects (this allows failures to be recognized and handled in groups.)

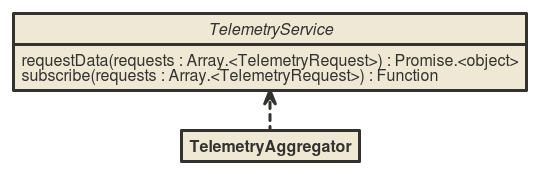

The telemetry service is responsible for acquiring telemetry data.

Notably, the platform does not include any providers for TelemetryService; applications built on Open MCT will need to implement a provider for this service if they wish to expose telemetry data. This is usually the most important step for integrating Open MCT into an existing telemetry system.

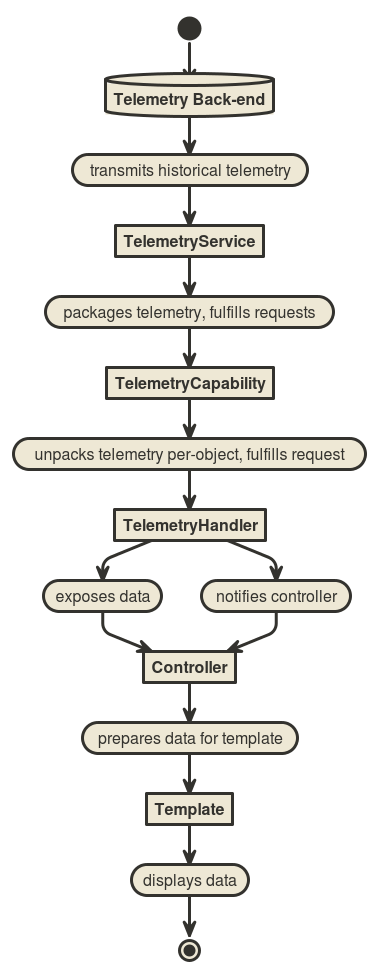

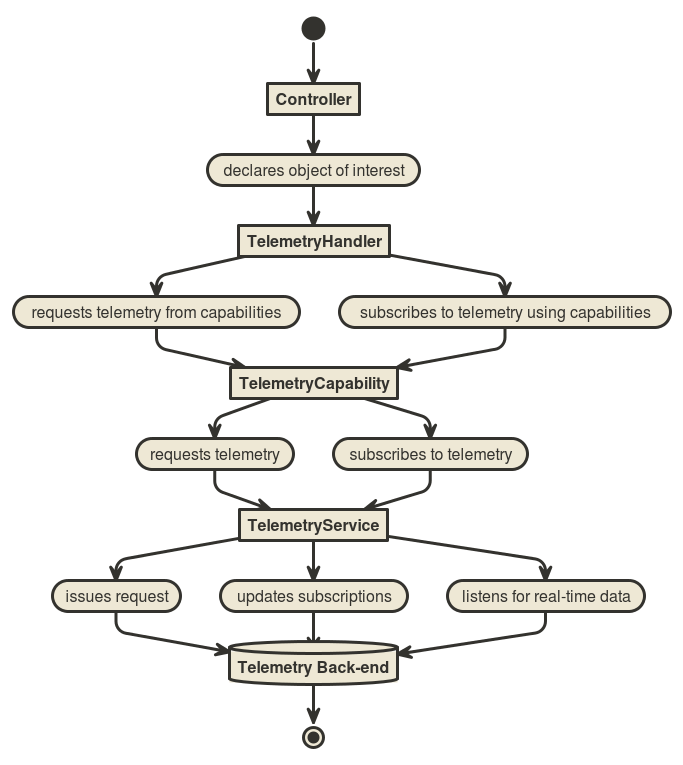

Requests for telemetry data are usually initiated in the presentation layer by some Controller referenced from a view. The telemetryHandler service is most commonly used (although one could also use an object's telemetry capability directly) as this handles capability delegation, by which a domain object such as a Telemetry Panel can declare that its telemetry capability should be handled by the objects it contains. Ultimately, the request for historical data and the new subscriptions will reach the TelemetryService, and, by way of the provider(s) which are present for that TelemetryService, will pass the same requests to the back-end.

The back-end, in turn, is expected to provide whatever historical telemetry is available to satisfy the request that has been issue.

One peculiarity of this approach is that we package many responses together at once in the TelemetryService, then unpack these in the TelemetryCapability, then repackage these in the TelemetryHandler. The rationale for this is as follows:

• In the TelemetryService, we want to have the ability to combine multiple requests into one call to the back-end, as many back-ends will support this. It follows that we give the response as a single object, packages in a manner that allows responses to individual requests to be easily identified.
• In the TelemetryCapability, we want to provide telemetry for a single object, so the telemetry data gets unpacked. This allows for the unpacking of data to be handled in a single place, and also permits a flexible substitution method; domain objects may have implementations of the telemetry capability that do not use the TelemetryService at all, while still maintaining compatibility with any presentation layer code written to utilize this capability. (This is true of capabilities generally.)
• In the TelemetryHandler, we want to group multiple responses back together again to make it easy for the presentation layer to consume. In this case, the grouping is different from what may have occurred in the TelemetryService; this grouping is based on what is expected to be useful in a specific view. The TelemetryService may be receiving requests from multiple views.

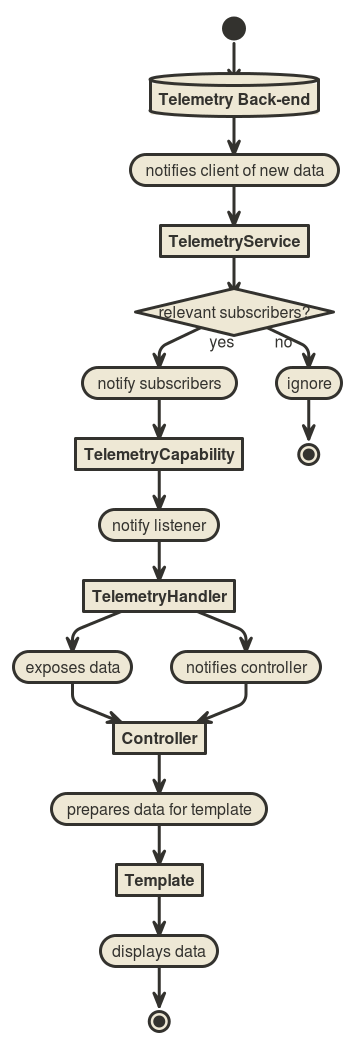

The flow of real-time data is similar, and is handled by a sequence of callbacks between the presentation layer component which is interested in data and the telemetry service. Providers in the telemetry service listen to the back-end for new data (via whatever mechanism their specific back-end supports), package this data in the same manner as historical data, and pass that to the callbacks which are associated with relevant requests.

Closely related to the notion of domain objects models is their persistence. The PersistenceService allows these to be saved and loaded. (Currently, this capability is only used for domain object models, but the interface has been designed without this idea in mind; other kinds of documents could be saved and loaded in the same manner.)

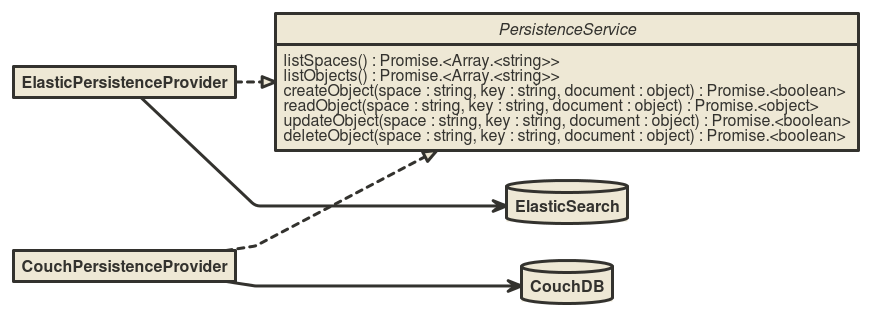

There is no single definitive implementation of a PersistenceService in the platform. Optional adapters are provided to store and load documents from CouchDB and ElasticSearch, respectively; plugin authors may also write additional adapters to utilize different back end technologies.

Actions are discrete tasks or behaviors that can be initiated by a user upon or using a domain object. Actions may appear as menu items or buttons in the user interface, or may be triggered by certain gestures.

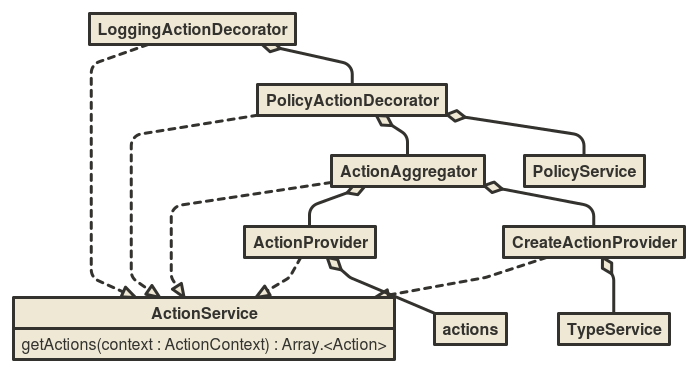

Responsibilities of platform components of the action service are as follows:

• ActionProvider exposes actions registered via extension category actions, supporting simple addition of new actions. Actions are filtered down to match action contexts based on criteria defined as part of an action's extension definition.
• CreateActionProvider provides the various Create actions which populate the Create menu. These are driven by the available types, so do not map easily to extension category actions; instead, these are generated after looking up which actions are available from the TypeService.
• ActionAggregator merges together actions from multiple providers.
• PolicyActionDecorator enforces the action policy category by filtering out actions which violate this policy, as determined by consulting the PolicyService.
• LoggingActionDecorator wraps exposed actions and writes to the console when they are performed.

The view service provides views that are relevant to a specified domain object. A "view" is a user-selectable visualization of a domain object.

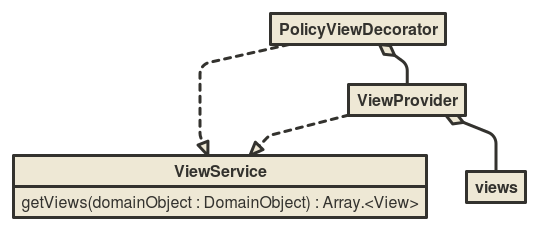

The responsibilities of components of the view service are as follows:

• ViewProvider exposes views registered via extension category views, supporting simple addition of new views. Views are filtered down to match domain objects based on criteria defined as part of a view's extension definition.
• PolicyViewDecorator enforces the view policy category by filtering out views which violate this policy, as determined by consulting the PolicyService.

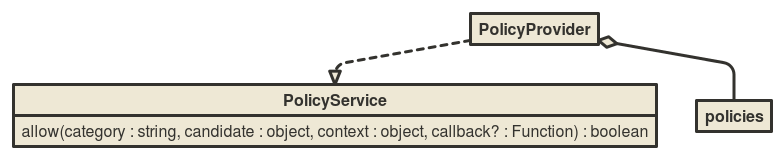

The policy service provides a general-purpose extensible decision-making mechanism; plugins can add new extensions of category policies to modify decisions of a known category.

Often, the policy service is referenced from a decorator for another service, to filter down the results of using that service based on some appropriate policy category.

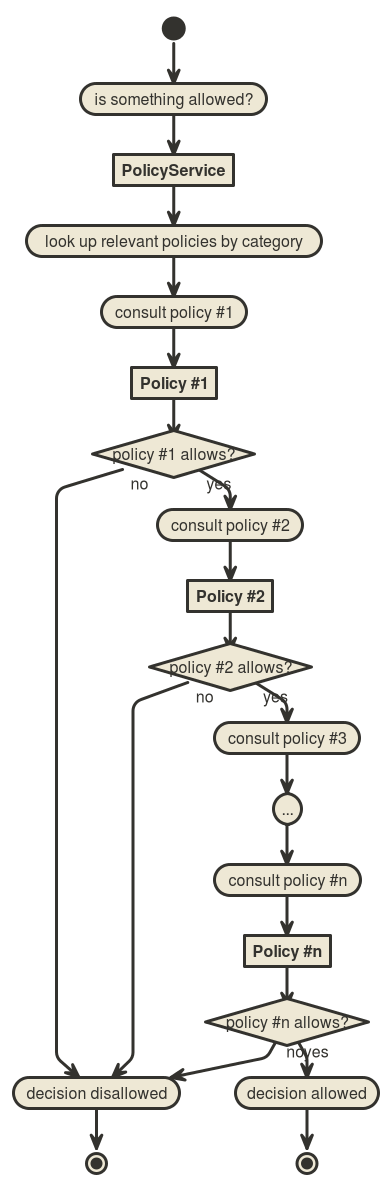

The policy provider works by looking up all registered policy extensions which are relevant to a particular category, then consulting each in order to see if they allow a particular candidate in a particular context; the types for the candidate and context arguments will vary depending on the category. Any one policy may disallow the decision as a whole.

The policy decision is effectively an "and" operation over the individual policy decisions: That is, all policies must agree to allow a particular policy decision, and the first policy to disallow a decision will cause the entire decision to be disallowed. As a consequence of this, policies should generally be written with a default behavior of "allow", and should only disallow the specific circumstances they are intended to disallow.

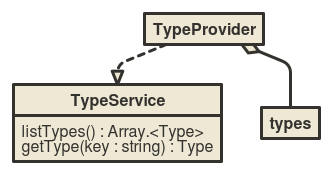

The type service provides metadata about the different types of domain objects that exist within an Open MCT application. The platform implementation reads these types in from extension category types and wraps them in a JavaScript interface.
